Product Description

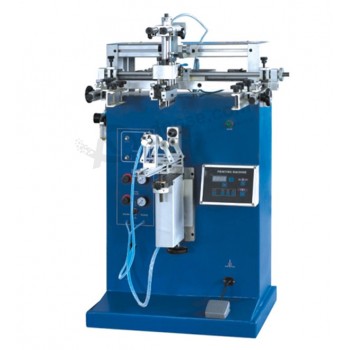

Pneumatic cylindrical/conical screen printing machine
1.Application:
Surface pirnting at plastic package ,glass bottle,stainless mug,fire-fighter,piston,paint barrel.etc.
2.Features:
1.Microprocessor control each function with high automation and easy operation;
2.4-digit auto counter built in;
3.Cylindrical/conical printing function available;
4.Auto ink squeegee and flooding, worktable elevating to assure easy operation and consistent print quality;
5.Printing stroke and speed are adjustable to meet different requirements;
6.Fine adjustment available on squeegee left/right position to make substrate alignment easy and exact;
7.Fine adjusted available on worktable up/down and plane angle, and frame front/rear, left/right and up/down with high printing precision.
3.technical parameter:
| Model | Max.printing area | Max.screenframe | Min.screen frame | Printing length | Max.printing diameter | Max. printing speed | Gas consumption | dimension |
| 400S | 400*220mm | 600*340mm | 230*140mm | 250mm | Full circle ø110mm Circular arc 400mm | 1200 cycles/Hour | 70L/min | 960*900*1270 |
