Hot selling industrial ceramic tile printing machine
Purchase Qty / Price:
≥1Units US $12800.00 - 16800.00
Zhejiang , China
Member Since: 2015
Company Type:
057487237913
Product Description
Quick Details
- Condition:
- New
- Place of Origin:
- Anhui, China (Mainland)
- Brand Name:
- Colorido
- Dimensions(L*W*H):
- 1950*2410*1120mm
- Gross Power:
- 1500W
- Plate Type:
- Flatbed Printer
- Weight:
- 350KG
- Automatic Grade:
- Automatic
- Color & Page:
- MULTICOLOR
- Certification:
- CE Certification
- Usage:
- Bill Printer, Card Printer, Label Printer, Acrylic,aluminum,wood,ceramic, metal,glass,card board, foam board etc
- Voltage:
- 110~220v 50~60hz
- Print Head:
- EPSON DX7, RICOH GH2220
- Print Speed:
- Max . 45㎡/h
- Printing Resolution:
- 720*360dpi, 720*720dpi, 720*1080dpi, 720*1440dpi
- Ink Type:
- Led uv ink,eco-solvent ink,textile ink
- Ink Color:
- 4 color(C/M/Y/K) 5 color(C/M/Y/K/W)
- Printing Material:
- Acrylic,aluminum,wood,ceramic, metal,glass,card board, foam board etc
- Max. Printing Size:
- 1300*1300mm
- Printing Thickness:
- 120mm( or customize thickness)
- Operating Environment:
- Temperature:10℃~35℃ Humidity:20%~80%
- Warranty:
- 12 months
- After-sales Service Provided:
- Engineers available to service machinery overseas
Supply Ability
- Supply Ability:
- 300 Unit/Units per Year
Packaging & Delivery
- Packaging Details
- Individual wooden box(export standard)
- Port
- Shanghai, Ningbo
- Lead Time :
Quantity(Units) 1 - 1 2 - 5 6 - 10 >10 Est. Time(day) 20 25 35 To be negotiated
Specifications

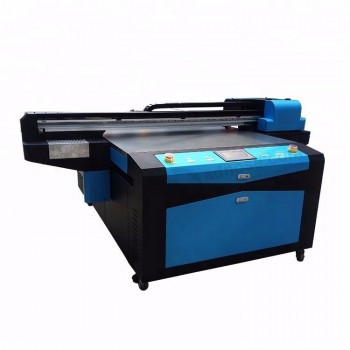

>>> CO-UV1313 UV Flatbed Printer
| Model | CO-UV1313 |
| Print Head | EPSON DX7, RICOH GH2220 |
| Print Speed | EPSON DX7:Draft Mode:32m²/h Production Mode:20m²/h High resolution Mode: 12m²/h RICOH GH2220:Draft Mode:45m²/h Production Mode:28m²/h High resolution Mode: 14m²/h |
| Printing Resolution | 720*360dpi, 720*720dpi, 720*1080dpi, 720*1440dpi |
| Max. Printing Size | 1300*1300mm |
| Printing Thickness | 120mm( or customize thickness) |
| Printing Material | Acrylic,aluminum model board,wood,ceramic tile, sheet metal,glass,card board, foam board etc |
| Ink Type | Led uv ink,eco-solvent ink,textile ink |
Ink Drop Size | Minimum 3pl ink |
| Ink Color | 4 color(C/M/Y/K) 5 color(C/M/Y/K/W) |
| Curable Method | LED light curing.max.20000-300000 hours curing life time Water cooling/Air cooling |
| Data Transmission Interface | USB2.0 |
| Software | PhotoPrint, Monteiro, UItraprint |
| Power Requirements | 110~220v 50~60hz Adsorption motor 1500W |
| Operating Environment | Temperature:10℃~35℃ Humidity:20%~80% |
| Image Format | Tiff, JEPG, Postscript3, EPS, PDF |
| Color Control | In line with the international standard for the ICC, with curve and density adjustment function |
| Machine Size | 1950*2410*1120mm 350KG |
| Package Size | 2050*2510*1220mm 430KG |
| Warranty | 12 months |
>>> Product Picture
>>> More Models
Features
Application
>>>Flatbed digital printers use inks made of acrylic monomers that are then exposed to strong UV-light to cure, or polymerize them. This process allows for printing on a wide variety of surfaces such as wood or metal, carpet, tile, and even glass.
Certificate
Our certificate is reviewed by the authority,
not fake, not fake or not, you can contact us to show you
Company Information
Related Products
Our Services
- Call Us>> Customer provide specification or sample.
- Sample Confirm>> Colorido provide sample for cusotmer approval.
- Order Confirm>> Order confirmed and proceed.
- Production>> Bulk production QC inspection.
- Shipping>> Final QC inspecition and Export.
- Commitment>>Colorido is responsible to all quality issues.
Packaging & Shipping
>>> FAQ
1) What’s your delivery time?
Our delivery lead time is within 10 working days after tt deposit received.
2) What’s your payment method?
Payment method is T/T (Wire Transfer) or LC, PAYPAL,Western Union etc. it depends on the country difference.
3) How to order a machine from you?
After you confirm the order details, we will send you Proforma Invoice, including our bank account. We will prepare the order on receipt of payment. The shipping documents will be sent to you in around one week after shipment date of departure.
4) If I have some technical problem, how can you help us to solve it?
Detailed description, photos or video will help our technician analyze the problem and give solution accordingly.
5) Once there is something need replace, what can I do?
We supply all the spare parts for the printer. If any part is broken, we will fix it or send you new parts after users send back the broken ones. We suggest that users order spare parts package for long time maintenance and fast replacement.
6) How much taxes should we pay?
Please consult your local customs or import agent for details. Thanks.
7) Can we send our technician to your factory for training?
Yes, you are warmly welcome to visit us for free training.
8) We want to become exclusive distributor of your machines?
We look forward to your close cooperation. After you order first machine and be capable of offering after service, then we can start to negotiate about distribution relationship. Thank you.
9) How about Warranty?
12 months warranty for our machines. During warranty period, we will send free parts for replacement (circuit boards) while broken parts should be sent back.
