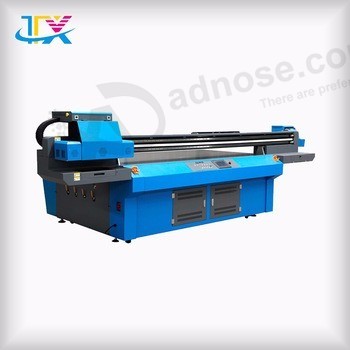

Format uv led flatbed digital wood metal plexiglass printing machine in China
Purchase Qty / Price:
Product Description
- Condition:
- New
- Place of Origin:
- Sichuan, China (Mainland)
- Brand Name:
- TXC
- Model Number:
- TXC2513E
- Dimensions(L*W*H):
- 4290*2150*1400mm
- Gross Power:
- 1200W
- Plate Type:
- Flatbed Printer
- Weight:
- 850kgs
- Automatic Grade:
- Automatic
- Color & Page:
- MULTICOLOR
- Certification:
- ISO/CE
- Usage:
- Bill Printer, Card Printer, Cloths Printer, Label Printer, Paper Printer, Tube Printer
- Voltage:
- 220V
- Product name:
- 3d printer
- Print head:
- Single or Double Ep DX5
- Ink type:
- Environmentally friendly UV ink
- Print size:
- Maximum 2500*1300mm(W*L)
- Print color:
- CMYK+4W/CMYKlmlc+2W/CMYK+2G+2W
- MOQ:
- 1 set
- Warranty:
- Two Years
- Printing resolution:
- 1440*2880dpi
- Payment terms:
- T/T(30% in advance and 70% balance)
- After-sales Service Provided:
- Engineers available to service machinery overseas
- Supply Ability:
- 100 Set/Sets per Month
- Packaging Details
- Strong wooden package with full foam or as customer's requirement.
- Port
- Shanghai
- Lead Time :
- Shipped in 10 days after payment
Format uv led flatbed digital wood metal plexiglass printing machine in China
Products Parameter
| Printer Parameter | |
| Model Number | TXC2513E |
| Print Head | Ep DX5, 2pcs |
| Print Size | 2500*1300mm |
| Medium Thickness | 100mm(customized) |
| Print Speed | 12m2/h |
| Print Direction | Bi/Uni direction |
| Print Color | CMYK+4W |
| Print Resolution | 2880X1440dpi |
| Plate Type | Flatbed |
| Printer head protection | Intellective automatic detect |
| Printer head maintain | Head clean during/after printing, keep-wet system when idle. |
| Materials to print | Metal, plstic, glass, wood, ceramics, acrylic, leather,etc. |
| Software language | Korean, German, French, Portuguese, Japanese, Spanish, Italian,Finnish,Dutch, English, etc. |
| System requirement | Windows XP/Vista/Win 7/Linus |
| Configuration Parameter | |
| Ink Dot Control | Variable-Size Droplet Technology |
| Ink Type | UV Curable Ink |
| Ink Color | Black, white, yellow, cyan, magenta |
| Ink Volume | 500ml |
| Ink supply system | Continuous Ink Supply System(CISS) |
| UV Lamp | LED UV lamps (Water cooling) |
| X, Y-Axis motors | Servo motors control |
| Software | RIP softwre |
| USB Interface | USB2.0; Ethernet |
| Power Requirement | AC220V 50Hz;AC110V 60Hz;1200W |
| Apperance parameter | |
| Dimension | 4290*2150*1400mm |
| Packaging Size | 4400*2360*1700mm |
| Packing | Strong wooden package with full foam. |
| Environmental Requirements | Temperature 10~35℃;Humidity 20~80% |
| Gross Weight | 950kg |
Product Characteristics
- Precision ball screw
- Fully mute imported precision guide rail
- LED cold light source UV curing lamp
- Nozzle collision avoidance system
- Imported servo motors
