Product Description

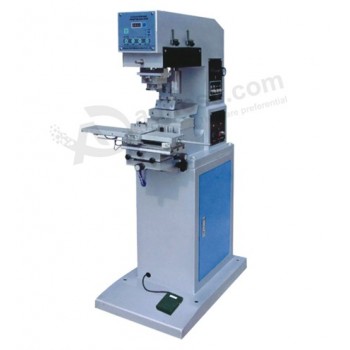

1 color curved pad printing machine
1.Feature:
1. Advanced computerized system control
2. Built-in digital counter
3. Emergency stop system to ensure the safety of operator
4. Light-weight, strong aluminum cast machine frame
5. Ink trays, work table and pads are independently adjustable for easy color registration
6. Speed, pad and printing stroke are easily adjustable for different printing requirements
7. Ink tray, doctor blade, brush and pads are easily installed and dismounted for quick cleaning
2.technical parameter:
| Model | CPY-100-100 |
| Operation | Semi-Automatic |
| No. of color | 1color (can be color-process) |
| Working station | 1Pcs |
| Max printing Diameter | Φ30-Φ45mm |
| Standard plate area | 100x75/150(mm) |
| Max printing speed | 1500(pcs/hr) |
| Power voltage | 220V/50Hz |
| Power consumption | 50W |
| Air pressure：6 Bar | 6 Bar |
| Machine dimension： | 79x42x135(CM) |
| Machine weight： | 98kg |
