Quantity(Sets) | 1 - 1 | >1 |
Est. Time(days) | 15 | To be negotiated |

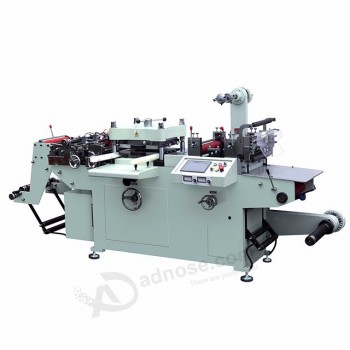

SPECIFICATIONS FOR AUTOMATIC FAST SPEED ADHESIVE LABEL PUNCHING DIE CUTTING MACHINE |
Model | JM-320A | JM-420A |
Die Cutting speed | 20-200 pcs/min | 20-200 pcs/min |
Max. unwinding diameter | 450mm | 450mm |
Max. web width | 320mm | 420mm |
Max. die cutting size | 300x300mm | 420x420mm |
Precision | ±0.10mm | ±0.10mm |
Power | 3kw | 4kw |
Voltage | 380v±10% | 380v±10% |
Machine weight | 2000kg | 2800kg |
Dimension | 2500x900x1400mm | 2600x1050x1800mm |
1)Multi-function in ONE machine: Laminating / partial laminating+unwinding+laminating+die cutting +discharging +sheet cutting/rewinding
This part is used to laminte adhesive layer with liner layer together before die cutting . It also can be used as unwinding parts separately .
Speed can be control , there are sensor to automatic sending out material .
This control panel could control the discharge waste speed and direction .Also the air suction for thin material .
This unit is used to die cut material , you can install the die from here .When material bypass , it pounch and die cut the products . The speed is adjustable , the deepth and power is adjustable too .
This is sheeting unit .after die cutting , maybe you need cut them into sheets , three pcs in group or five pcs in one group ,you can set it in touch screen .
This shaft is used for discharge waste after die cutting . The speed and direction of rolling can be control at the control panel . You can increase slowly to test the discharge tension ,make sure it discharge well with nice products .
Both wood die and metal die could be used for this machine .You can design your moulds according to your products .We also can introduce die supplier for you in China .
You can set all parameter in touch screen , the length ,batch quantity ,total quantity ,die cutting speed ,etc . It's convenient for workers to operate the machine .
Optional part for automatic fast speed adhesive label punching die cutting machine |
Application for automatic fast speed adhesive label punching die cutting machine
1. Glue-based products: 3C parts, foot pad, silicone, hook and loop backing, conductive tape, double-side tape,3M tape and all kinds of glue-based products.
2. Dustproof materials: cosmetic cotton, camera cotton, high density sponge, filtering sponge, dustproof filter, non-woven fabric, etc.
3. Shockproof materials: EVA tape, rubber cushion, PORON cushion,3M, flame-resistant EVA, EPDM,etc.
4. Insulation/shielding materials : EMI Shielding material, fireproof paper, aluminum foil, copper foil, PVC,PET, k paper, sponge sheath, pearl cotton sheath and so on.
5. Heat-conductive/ heat-proof materials : silicon sheet, transparent mica, fiber cloth, heat insulation cotton and so on.
6. Other materials which are suitable for die cutting.
Space are not enough to list all kinds of materials ,if you are not sure if your material can be die cut by this machine ,please send photo for reference or send material for testing ,we will test and send you working video .
Packaging | |
Packaging Details | The normal package for automatic fast speed adhesive label punching die cutting machine is plywood case . It does not need Fumigation .It's easy for forklift to upload and download .Safety transportation .,we will use PE film for packing first before plywood case or pack it according to customers special request. |
After sale service for automatic fast speed adhesive label punching die cutting machine is as follow :
1. Free sample testing and video for your reference
2. Prompt delivery within 24 hours
3. One year warranty ,whole life technical support
4. Free training in our factory available before delivering machines
5. Engineers available to service machinery overseas
6. Technical support: Professional engineers team to help you design a drawing of machine to get highest profit with lowest cost and offer you technical support any time.
7. Other demanded spare part or equipment support: Plenty of cooperated professional supplier for spare parts or other necessary equipment make it possible for us to offer our customers big convenience to complete their production line in high quality with low cost in a short time.
8.Every customer can get one piece of English operation manual , a total working video for machines ,details on every button function ,normal notice when operation .
JiuMu Machinery (Kunshan) Co.,Ltd. comprise research ,development ,production ,sale and service as one of professional electronic products machinery manufacturing company . We focus on automatic cutting machine ,slitting machine ,laminating machine for many years, five experienced engineers are on service .R&D department is responsible for developing new product according to customers' needs |
Jiu Mu machinery (kunshan ) Co., ltd , It has its own processing workshop, part of the components were purchased from the outside suppliers , assembly workshop, program debugging. So we have large power to customize machine for customers .
Customer visiting from all over the world
CE Certificate for automatic fast speed adhesive label punching die cutting machine
If you want to ask for quotation about automatic fast speed adhesive label punching die cutting machine, please tell us details information as much as you can ,so we can quote to you as soon as possible .
Buying Guides for automatic fast speed adhesive label punching die cutting machine | |
Material | Pictures are appreciated if possible |
Diameter | ID & OD |
Thickness | mm |
Weight | KG |
Length you want to cut | mm |
Width | mm |
