Product Description

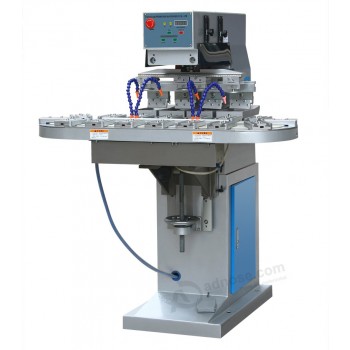

1 Color inkwell Pad Printing Machine
1.Application:
Applicable for printing flat & round surface, such as cell phone button, golf, toy, pens, PC mouse, and small electronic accessories etc. It is easy to operation and maintenance, convenient to replace ink, cleaning ink tray.
2.Feature:
1. Advanced computerized system control
2. Built-in digital counter
3. Emergency stop system to ensure the safety of operator
4. Light-weight, strong aluminum cast machine frame
5. Ink trays, work table and pads are independently adjustable for easy color registration
6. Speed, pad and printing stroke are easily adjustable for different printing requirements
7. Ink tray, doctor blade, brush and pads are easily installed and dismounted for quick cleaning
3.technical parameter:
Model | CP-D-125-100 | CP-D-200-150 |
Operation | Semi-Automatic | Semi-Automatic |
No. of color | 1color (can be color-process) | 1color (can be color-process) |
Working station | 1Pcs | 1Pcs |
Working table area | 200×125mm | 200×125mm |
Standard plate area | 100x75/150(mm) | 150x100/150x200(mm) |
Max printing spee | 1500(pcs/hr) | 1500(pcs/hr) |
Power voltage | 220V/50Hz | 220V/50Hz |
Power consumption | 50W | 50W |
Air pressure：6 Bar | 6 Bar | 6 Bar |
Machine dimension： | 79x42x135(CM) | 87X43X135(CM) |
Machine weight： | 98kg | 102kg |
