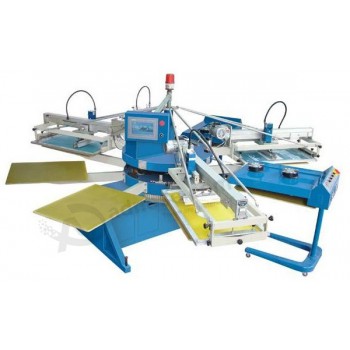

TX-SPE 4 Color T Shirt Screen Printing Machine
1. Application
SPE series is the multifunctional automatic screen printers. With intelligent micro-processor, touch screen and servo motor driven system equipped, it brings into high printing stability and colors registration tolerance up to ±0.05mm. All parts of the machine body are tested precisely before installation, ensuring minimal maintenance and easy operation. The SPE series automatic screen printer must be your ideal printer in printing industry.
2. Features
1).Servo motor driven and high-tech system built in
2).Turntable Rotates freely for high positioning nice registration.
3).Print/flood speeds adjusted electrically
4).Print pressure, print stroke and its angle are adjustable.
5).The movable dryer can be put inside of any print stations as necessary
3.Parameter
Model | SPE -104/8 | SPE-156/10 | SPE-158/12 |
Print Color/Station | 4-6/8 | 4-8/10 | 6-10/12 |
Max. Image Area | 500×700/mm | 500×700/mm | 500×700/mm |
Pallet Size | 600×800/mm | 600×800/mm | 600×800/mm |
frame Size | 680×980/mm | 680×980/mm | 680×980/mm |
Air | ≥0.8Mpa | ≥1.0Mpa | ≥1.0Mpa |
Max. Output | 700pcs/h | 700pcs/h | 700pcs/h |
Power | 2.0Kw | 2.0Kw | 2.9Kw |
Dryer Unit Power | 13.5Kw | 13.5Kw | 13.5Kw |
Weight | 1500Kg | 2000 Kg | 2200 Kg |
