Fangyuan EPS foam thermocol plate disposable thermocol plate making machine
Purchase Qty / Price:
, China
Member Since: 2008
Company Type:
15820024887
15820024887
Product Description
- Condition:
- New
- Plastic Type:
- EPS
- Max.Forming Height(mm):
- 1000 mm
- Forming Width (mm):
- 1200 mm
- Forming Length (mm):
- 2000 mm
- Heating Power (kW):
- 24.5 kW
- Type:
- Vacuum Forming Machine
- Product Type:
- disposable thermocol plate making machine
- Automatic:
- Yes
- Place of Origin:
- Zhejiang, China
- Brand Name:
- FANGYUAN
- Voltage:
- 10
- Dimension(L*W*H):
- 12600*3960*2906
- Certification:
- ISO9001:2008
- Weight (T):
- 6 T
- Warranty:
- 1 YEAR, 1 YEAR
- After-sales Service Provided:
- Field installation, commissioning and training, Engineers available to service machinery overseas
- Key Selling Points:
- Energy saving
- After Warranty Service:
- Field maintenance and repair service
- Applicable Industries:
- Food & Beverage Shops, Building/Insulation
- Local Service Location:
- Egypt, Brazil, India, Mexico
- Showroom Location:
- Egypt, Turkey, Viet Nam, Saudi Arabia, Indonesia, India, Thailand, Algeria
- Weight:
- 15000
- HS code:
- 84778000 foam concrete wall plates
- Advantages:
- with three ballvalves
- Name:
- disposable thermocol plate making machine
- Block size:
- 2000*1200*1000
- Mould cavity size:
- 2040*1240*1030
- Color:
- Blue disposable thermocol plate making machine
- Application:
- 3d panel,sandwich panel,wall panel insulation
- CE Certified.
- Valid from 2018-08-23 until 2049-12-31
- Supply Ability:
- 2000 Set/Sets per Year
- Packaging Details
- wooden.HS:84774010. disposable thermocol plate making machine
- Port
- Shanghai
- Picture Example:
- Lead Time :
Quantity(Sets) 1 - 1 >1 Est. Time(days) 45 To be negotiated
Online Customization

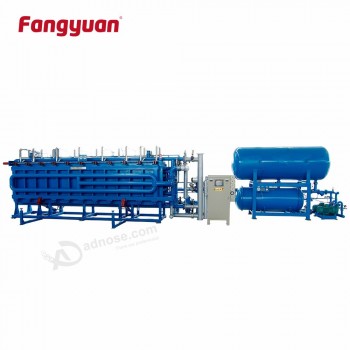

SPB200-800DZ disposable thermocol plate making machine
1.Machine structure:
- The sandwich panel machine mould are welded by strong rectangle tube and steel plate with high strength frame, keep more safety;
- All block mould frame are treated by heat-treatment to release the welding stress, so that the frames would not deformed.
- After heating treatment, all mould frame are processed by sand blasting treatment to get rust prevention, so under coat and finishing coat are greatly improved anticorrosion performance and long life;
- Adopts three Germany gauges and safety valve for double protection, the sandwich panel machine will be water pressure and steam many testing, ensure the machine more stable and safety.
2. Steam system:
- Adopts three ball valves to take place of one big steam valve (save steam 20%) with ISO-standard butterfly valves, greatly improved stably and long life;
3. Control system:
- Adopts PLC(Japan Mitsubishi) and touch screen (French Schneider) with easily operation;
- Equipped with material level sensor for control the filling, the block cooling is controlled by foam pressure sensor, it is realize the filling, heating, cooling and open block mould, the whole working procedure automatically.
Note:
- As for economic type which is without Germany gauge ,foam pressure sensor ,ISO-standard butterfly valve.
Item | SPB200/DZ | SPB300/DZ | SPB400/DZ | SPB600/DZ | SPB800/DZ | ||
Mould Cavity Size | 2040×1240 ×1030mm | 3060×1240 ×630mm | 4080×1240 ×1030mm | 6100×1240 ×1030mm | 8120×1240 ×1030 mm | ||
Block Size(12g/L) | 2000×1200 ×1000mm | 3000×1200 ×1000mm | 4000×1200 ×1000mm | 6000×1200 ×1000mm | 8000×1200 ×1000mm | ||
Throughput | 15kg/m³ | 5min/cycle | 6min/cycle | 7min/cycle | 8min/cycle | 8min/cycle | |
Connected Load | 20.5-24.5kW | 20.5-24.5kW | 24.5-35.5kW | 24.5-35.5kW | 35.5-43.5kW | ||
Outside Dimensions | L × W× H | 5700×4000 ×2850mm | 7200×4500 ×3000mm | 11000×4500 ×3000mm | 12600×3960 ×2906mm | 15700×4600 ×3400mm | |
Weight | 6.00t | 7.20t | 12.0t | 15.0t | 18.5t | ||
Room Height Required | 6000mm | 6000mm | 6000mm | 6000mm | 6000mm | ||
Note: We custom make machines according to customer's requirement. | |||||||
