Small Uv Printer CO-UV6090 Led Flatbed Desktop Uv Printer
Purchase Qty / Price:
≥1 Units
US $8000.00 - 9000.00
Zhejiang , China
Member Since: 2015
Company Type:
057487237913
Product Description
Quick Details
- Condition:
- New
- Place of Origin:
- Anhui, China (Mainland)
- Brand Name:
- Colorido
- Dimensions(L*W*H):
- 1600*1500*700MM
- Gross Power:
- 700W
- Plate Type:
- Flatbed Printer
- After-sales Service Provided:
- Field maintenance and repair service, Engineers available to service machinery overseas
- Weight:
- 280KG
- Automatic Grade:
- Automatic
- Color & Page:
- MULTICOLOR
- Certification:
- CE Certification
- Usage:
- Bill Printer, Card Printer, Label Printer, Acrylic,aluminum,wood,ceramic, metal,glass,card board, foam board etc
- Voltage:
- 110~220v 50~60hz
- Warranty:
- 1 Year
- Print Dimension:
- 600mm*900mm
- Ink Type:
- sublimation /reactive /pigment, Blue,mageta,yellow,black,white,,light oil
- Print Head:
- EPSON 7
- Maximum print size:
- 600mm*900mm
- Printing Resolution:
- 720*360dpi, 720*720dpi, 720*1080dpi, 720*1440dpi
- Printing Material:
- Acrylic, aluminum plastic board, wood, tile, foam board,,etc
- Max. Printing Size:
- 600mm*900mm
- Printing Thickness:
- 140mm( or customize thickness)
- Operating Environment:
- temperature:20℃ to 35℃ humidity:60% to 80%
- High quality pattern:
- 4-5m2/h
Supply Ability
- Supply Ability:
- 300 Unit/Units per Year
Packaging & Delivery
- Packaging Details
- Individual wooden box(export standard).
- Port
- Shanghai, Ningbo
- Lead Time :
Quantity(Units) 1 - 1 2 - 10 >10 Est. Time(day) 20 35 To be negotiated
Specifications
>>> CO-UV6090 UV Flatbed Printer
| Model type | CO-UV6090 | |||
| Nozzle configurntion | Japan espon seven generation micro piezeoletric nozzles 1-2epson nozzles xp6001-3 GH2220 interdustrial nozzles 1-4 | |||
| Maximum print size | 600mm*900mm | |||
| The printer speed | Epson 7 generations:Two nozzles | sketch model:12-13m2/H | prduction 6-7m2/h | High quality pattern 4-5m2/h |
| Epson XP600:Three nozzles | sketch model:6m2/H | prduction 3.5m2/h | High quality pattern 2.5m2/h | |
| GH2220:Four nozzles | sketch model:9m2/H | prduction 5.5m2/h | High quality pattern 3m2/h | |
| Printer material | Type:Acrylic, aluminum plastic board, wood, tile, foam board, metal plate, glass, cardboard and other plane objects | |||
| Tickness:140mm | Uniform weight:15KG | Maximum size:600mm*900mm | ||
| Ink type | Blue,mageta,yellow,black,white,,light oil | |||
| The UV lamp | LED curinglight,2000 hours long use cooling water | |||
| RIP software | Photoprint,Monteiro,Ultraprint;Microsoft Windows2000/XP/WIN7 | |||
| power supply voltage ,power | 110-220V 50-60Hz work 700W | |||
| Image format | Tiff,JEPG,Postscript3,EPS,PDF,ETC | |||
| Color control | Comply with ICC standard,have curve and density adjustment fonction | |||
| Print resolution | 720*360dpi,720*720dpi,360*1080dpi,720*1080dpi,720*1440dpi,1440*1440dpi | |||
| Operating environment | temperature:20℃ to 35℃ humidity:60% to 80% | |||
| Apply the ink | Ricoh and LED-UV ink,solvent,textile ink | |||
| The machine size(mm) | 1600*1500*700 | |||
| Packing size(mm) | 1700*1600*800 | |||

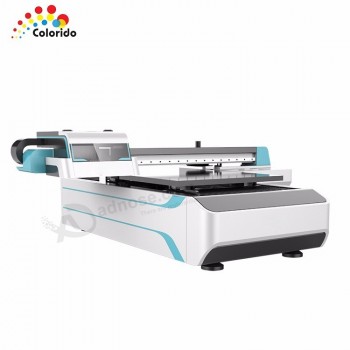

>>> Product Picture
>>> Machine advantage
| Industrialgrade Taiwan silkbar, accurate positioning, high precision and durability. | | Using 200W servo motor, theresponse is fast and the positioningis accurate. |
| Automatic height measurement, can accurately automatically measurethe material height, has reached thegoal of protecting the nozzle. | | The lift amplitude is large, the car head is stable and thebeam accuracy is 0.O1 mm. |
| USES compressed water Icooling technology to better heatand prolong the life of LED lights. | | Adopt the Taiwan HIWINbrand. Stable quality and highprecision. |
Machines for advertising industry, glass processing industry, the home improvement industry, the furniture industry,
handicraft processing industry, leather industry, printing packaging and printing industry, mobile phone shell industry, toy industry, jewelry industry and so on.
>>> More Models
Application
>>>Flatbed digital printers use inks made of acrylic monomers that are then exposed to strong UV-light to cure, or polymerize them. This process allows for printing on a wide variety of surfaces such as wood or metal, carpet, tile, and even glass.
Certificate
Our certificate is reviewed by the authority,
not fake, not fake or not, you can contact us to show you
Company Information
Related Products
Our Services
- Call Us>> Customer provide specification or sample.
- Sample Confirm>> Colorido provide sample for cusotmer approval.
- Order Confirm>> Order confirmed and proceed.
- Production>> Bulk production QC inspection.
- Shipping>> Final QC inspecition and Export.
- Commitment>>Colorido is responsible to all quality issues.
Packaging & Shipping
>>> FAQ
1) What’s your delivery time?
Our delivery lead time is within 10 working days after tt deposit received.
2) What’s your payment method?
Payment method is T/T (Wire Transfer) or LC, PAYPAL,Western Union etc. it depends on the country difference.
3) How to order a machine from you?
After you confirm the order details, we will send you Proforma Invoice, including our bank account. We will prepare the order on receipt of payment. The shipping documents will be sent to you in around one week after shipment date of departure.
4) If I have some technical problem, how can you help us to solve it?
Detailed description, photos or video will help our technician analyze the problem and give solution accordingly.
5) Once there is something need replace, what can I do?
We supply all the spare parts for the printer. If any part is broken, we will fix it or send you new parts after users send back the broken ones. We suggest that users order spare parts package for long time maintenance and fast replacement.
6) How much taxes should we pay?
Please consult your local customs or import agent for details. Thanks.
7) Can we send our technician to your factory for training?
Yes, you are warmly welcome to visit us for free training.
8) We want to become exclusive distributor of your machines?
We look forward to your close cooperation. After you order first machine and be capable of offering after service, then we can start to negotiate about distribution relationship. Thank you.
9) How about Warranty?
12 months warranty for our machines. During warranty period, we will send free parts for replacement (circuit boards) while broken parts should be sent back.
