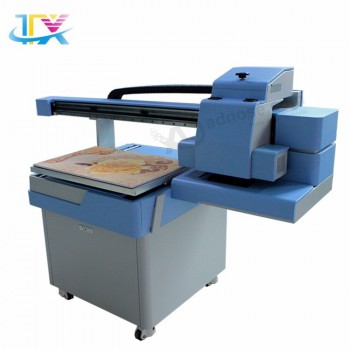

a2 size high solution uv flatbed pvc printer t-shirt printer acrylic printing machine
Purchase Qty / Price:
≥1 Sets
US $3500.00 - 5000.00
Product Description
Quick Details
- Type:
- Inkjet Printer
- Condition:
- New
- Plate Type:
- Flatbed Printer
- Place of Origin:
- Sichuan, China (Mainland)
- Brand Name:
- TXC
- Model Number:
- 6042E
- Usage:
- Bill Printer, Card Printer, Cloths Printer, Label Printer, Paper Printer, Tube Printer
- Automatic Grade:
- Automatic
- Color & Page:
- Multicolor
- Voltage:
- 110V/220V
- Gross Power:
- 350W
- Dimensions(L*W*H):
- 720*1600*1160mm
- Weight:
- Net weight:85KG/Gross weight:135KG
- Certification:
- CE Certification
- Print size:
- 600*420mm
- Printhead:
- 2*Ep Dx10
- Head Maintain:
- Head clean after printing, keep-wet system when idle
- Print Direction:
- Unidirection/Bidirection
- The minimum size of a drop:
- 3.5pl
- UV Lamp quantity:
- 2 UV Lamp
- UV Lamp power:
- 150W
- X/Y/Z-axis motors:
- Servo Motors
- System require:
- WIN7/XP/2000
- Warranty:
- 2 years
- After-sales Service Provided:
- Engineers available to service machinery overseas
Supply Ability
- Supply Ability:
- 100 Piece/Pieces per Month
Packaging & Delivery
- Packaging Details
- Selling Units: Single item
Single package size: 95*180*131cm
Package Typ: Standard export seaworthy packing or as customer's requirements.
- Port
- Shanghai/Shenzhen
- Lead Time :
- Within 7 days after payment
Product Description
Model | TXC6042E |
UV Light wavelength | 395-400nm |
Max print thickness | 200mm |
Number of printhead | 2-4 |
Printing size | 60*42CM |
Repeat Printing Precision | Overlap small than 0.1mm |
Max Media Weight | 30KG |
Color | C.M.Y.K.+W |
Software | Photoprint, Maintop, Ultraprint |
Operation environment | Temperature 20~40°C Humidity 30~70% |
Cooling type | Air cooling |
Cooling adjustment | Automatic on/off between 25-40c |
Resolution | 1440dpi*2880dpi |
voltage | AC220/110V 50~60HZ |
Ink Supply System | Continuous Ink Supply System(CISS) |
Weight of the machine | Net weight:85KG/Gross weight:135KG |
Size of the machine | 75cm*160cm*116cm |
Package | Strong wooden package with full foam |
Printing Samples
Detailed Images
Unique plate
Smooth plate surface make print material more steady.
Guide rail
Ensure the print direction precisely.
Unidirection ＆ Bidirection
6 color multi-printhead
High precision and small size of ink droplets
contribute to low rate of blocked printhead
and corrosion resistance.
Servo Motors
Bring you with the best printing experience.
Intelligent Operating interface
The intelligent operating interface provide you with more convenience.
UV Lamp
Imported high-quality UV lamp.
